FKM Rubber Compound

Fluoroelastomer Rubber Compound with Low Compression Set and High Temperature Resistance for Automotive Industry

All Category

FKM Rubber Precompound

FKM Rubber Compound

FKM Low Temperature

FKM Fluorine Rubber

Fluoroelastomer Rubber

HNBR Compound

FVMQ Rubber Compounds

FFKM O Rings

VMQ Compound

FFKM Compound

Rubber Additives

Fluorosilicone Rubber

Fluorocarbon Rubber

Ms. Ada

yguo@dowhon.com

8613753601944

Contact Now

Fluoroelastomer Rubber Compound with Low Compression Set and High Temperature Resistance for Automotive Industry

MOQ:	20
Price:	8.5

Detail Information

Product Description

Detail Information

Model NO.:

DHF Series

Appearance:

Slab

Form:

Solid

Shore A:

65-90

Compression Set:

Thickness:

2mm-8mm

Width:

As Require

Specification:

445*305*145mm

Fluorine Content:

Min 66%

Specific Gravity:

Min1.92

Hardness Shore A:

75±5

Elongation At Break:

Min200

Tensile Strength:

Min11.0 MPa

Brittleness Temperature:

-26ºC

Volume Change:

0.4% (ASTM 1# Oil)

Highlight:

Low Compression Set Fluoroelastomer Rubber Compound

High Temperature Resistance FKM Rubber Compound

Automotive Industry Application Fluorocarbon Rubber Compound

Product Description

Company Profile

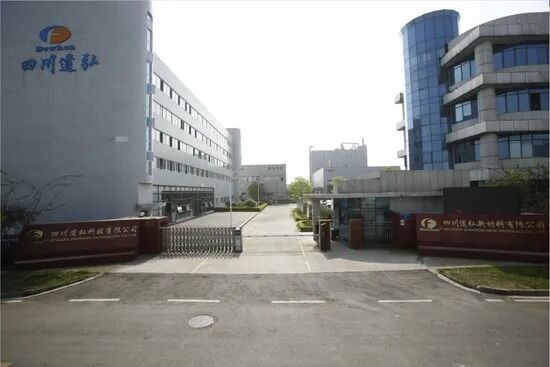

Founded in 2002 and headquartered in Chengdu National Industrial Park - Meishan Jinxiang Industrial Park.

Largest FKM manufacturer in China with actual output of 5500mt in 2022
2 CNAS approved laboratories
10,000 clarification workshop for smart-wearable devices
100,000 clarification workshop for FKM precompounds and compounds
13 production lines for FKM precompounds and compounds

Product Overview: Fluoroelastomer DHF-75611F

Typical Properties

F Content	Min 66%
Specific Gravity	Min 1.92
Physical Form	Slab
Color	Various
Solubility	Ketones and Esters
Hardness (Shore A)	75±5

Product Description

DHF-75611F is a fluoroelastomer compound containing copolymer of hexa-fluoropropylene and vinylidene-fluoride, curatives and fillers.

Applications

Designed for gaskets and O-rings, DHF-75611F is a ready-to-use compound for direct final product manufacturing.

Key Features

Excellent mold release properties
Superior hot tear resistance
Good mold flow characteristics
Low compression set

Packaging Information

DHF-75611F is packaged with PE film in cartons. Net weight is 25kg per carton.

Safety and Handling

Store in well-ventilated areas
Strictly no smoking in working areas
Avoid eye contact
Wash thoroughly after handling any contacted skin and clothing

Detailed Physical Properties

Press Cure: 180ºC for 5 minutes, Post Cure: 230ºC for 24 hours

Hardness, Shore A	75±5 (ASTM D 412)
Elongation at Break, %	Min 200 (ASTM D 412)
Tensile, MPa	Min 11.0 (ASTM D 2240)
Compression Set % (200ºC for 70 hours)	Max 15 (ASTM D 395 method B Disc)

Low Temperature Resistance

Brittleness Temperature, ºC

-26 (ASTM D 1329)

Air Oven Aging (ASTM D-537, 230ºC for 70 hours)

Hardness Change, degree	2
Tensile Change %	-2
Elongation at Break Change %	0

Oil Resistance (ASTM D471 standard, 150ºC for 70 hours)

ASTM 1# Standard Oil

Hardness Change, degree	2
Tensile Change %	0
Elongation at Break Change %	0
Volume Change %	0.4

ASTM 3# Standard Oil

Hardness Change, degree	6
Tensile Change %	-4
Elongation at Break Change %	2
Volume Change %	2.1

Product Gallery

Packaging & Shipping

20kg/25kg per carton via courier (FedEx, DHL, etc.); 500kg/625kg/700kg per pallet for shipping.

Installation Instructions

Certifications & Accolades

ISO9001, ISO14001, ISO16949

Currently holds 65 patents with 15 invention patents under application. Participated in formulation of 4 National Standards.

Gazelle Enterprise of Sichuan Province
Technologically Advanced Little Giant Enterprise
National High-Tech Enterprise
Key Cultivation New Material Enterprise of Sichuan Province
Key New Material Enterprise of Chengdu
Transform and Upgrading Advanced Enterprises
Enterprise Technology Center of Sichuan Province
Member Unit of China Fluorinated and Silicone Association Council

Frequently Asked Questions

What is your minimum order quantity?
By air: 20-25kg, by sea: 100kg.
What is your delivery time?
For stock goods: within 3 working days; otherwise: 7-14 working days.
What is your packaging?
Goods are packaged with PE film in cartons (20-25kg net per carton). 500kg/625kg/700kg per pallet.
How can we select the right grade for our application?
Contact our sales team for recommendations based on your specific physical properties and requirements.
