FKM Rubber Compound

Sichuan Dowhon FKM Rubber Compound with Low Compression Set and High Temperature Resistance for Automotive Industry

All Category

FKM Rubber Precompound

FKM Rubber Compound

FKM Low Temperature

FKM Fluorine Rubber

Fluoroelastomer Rubber

HNBR Compound

FVMQ Rubber Compounds

FFKM O Rings

VMQ Compound

FFKM Compound

Rubber Additives

Fluorosilicone Rubber

Fluorocarbon Rubber

Ms. Ada

yguo@dowhon.com

8613753601944

Contact Now

Sichuan Dowhon FKM Rubber Compound with Low Compression Set and High Temperature Resistance for Automotive Industry

MOQ:	20
Price:	10

Detail Information

Product Description

Detail Information

Model NO.:

DHF Series

Appearance:

Slab

Form:

Solid

Mooney Viscosity:

20-60

Compression Set:

Thickness:

2mm-8mm

Width:

As Require

Specification:

445*305*145mm

Fluoro Content:

Min 66%

Specific Gravity:

Min1.92

Hardness:

75 ±5

Elongation At Break:

205%

Tensile Strength:

12 MPa

Brittleness Temperature:

-26ºC

Volume Change:

0.4% (ASTM 1# Oil), 2.1% (ASTM 3# Oil)

Highlight:

Low Compression Set FKM Rubber Compound

High Temperature Resistance Fluoroelastomer Precompound

Automotive Industry Application FKM Precompound

Product Description

Company Profile

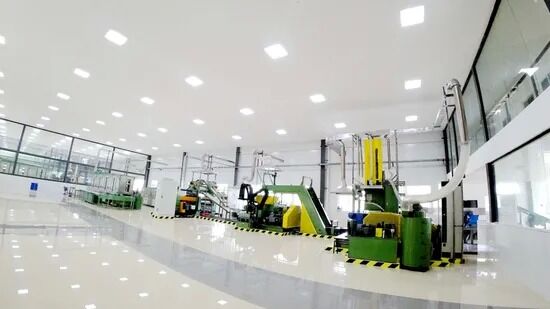

Sichuan Dowhon founded in 2002, headquartered in Chengdu National Industrial Park - Meishan Jinxiang Industrial Park.

The largest FKM manufacturer in China, with actual output of 14,000mt
2 CNAS approved labs
1 10,000 clarification workshop for smart-wearable devices
1 100,000 clarification workshop for FKM precompounds and compounds
21 producing lines for FKM precompounds and compounds
Over 85% market share for Chinese smart-wearable devices

Product Description

Typical Properties

Fluoro Content	Min 66%
Specific Gravity	Min 1.92
Physical form	Slab
Color	VARIOUS
Solubility	Ketones and Esters
Hardness (shore A)	75 ±5

Instruction

DHF-75#11FL is a fluoroelastomer compound which includes copolymer of hexa-fluoropropylene and vinylidene-fluoride, curatives and fillers.

Applications

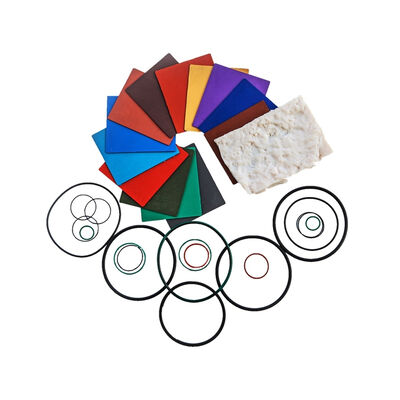

It is designed for O-ring applications. DHF-75#11FL is a compound that can be used directly for final product manufacturing.

Features

Excellent mold release
Excellent hot tear resistance
Good mold flow
Low compression set
Low mooney viscosity

Packing Information

DHF-75#11FL is packaged with PE film in cartons. The weight is 25kg net per carton.

Safety and Handling

Store in well ventilated place. Smoking is strictly forbidden in working areas. Avoid eye contact. Wash thoroughly any contacted skin and clothing after handling.

Product Parameters

Typical Properties of Vulcanizate

Press Cure 180ºC@5min, Post Cure 230ºC@24hour

Hardness, Shore A	75 (ASTM D 412)
Elongation at Break, %	205 (ASTM D 412)
Tensile, MPa	12 (ASTM D 2240)
Compression set % 200ºC@70hour	15 (ASTM D 395 method B Disc)

Low Temperature Resistance

Brittleness temperature, ºC

-26 (ASTM D 1329)

Air Oven Aging ASTM D-537, 230ºC@70h

Hardness change, degree	2
Tensile change %	-2
Elongation at break change %	0

Oil Resistance ASTM D471 Standard, 150ºC@70h

ASTM 1# Standard Oil

Hardness change, degree	2
Tensile change %	0
Elongation at break change %	0
Volume Change %	0.4

ASTM 3# Standard Oil

Hardness change, degree	6
Tensile change %	-4
Elongation at break change %	2
Volume Change %	2.1

Detailed Photos

Packaging & Shipping

20kgs/25kgs per carton by courier (FedEx, DHL, etc.); 500kgs/625kgs/700kgs per pallet for shipping.

Installation Instructions

Certifications

ISO9001, ISO14001, IATF16949

Currently has 65 patents, 15 invention patents are under application, participated in the formulation of 4 National Standards.

Frequently Asked Questions

1. What's your MOQ?

BY air MOQ is 20-25KG, by sea MOQ is 100KG.

2. What's your delivery time?

For stock goods, we can arrange delivery within 3 working days, otherwise delivery time is around 7-14 working days.

3. What's your package?

Usually goods are packaged with PE film in carton. The weight is 20-25kg net per carton. 500kgs/625kgs/700kgs in a pallet.

4. How can we select the exactly grade which suit for our usage?

Please contact our sales, we'll recommend suitable grade according to your typical physical properties and other related information.

Tags:
