Low Compression Set FKM Rubber Compound with High Temperature Resistance for Automotive Industry

MOQ:	20
Price:	10

Detail Information

Product Description

Detail Information

Mooney Viscosity:

20-60

Compression Set:

Thickness:

2mm-8mm

Package Size:

445*305*145mm

Fluoro Content:

Min 66%

Specific Gravity:

Min1.92

Hardness:

75 ±5

Elongation At Break:

205%

Tensile Strength:

12 MPa

Brittleness Temperature:

-26ºC

Hardness Change:

2 Degree

Tensile Change:

-2%

Volume Change:

0.4%

Package Weight:

25kg Net Per Carton

Production Capacity:

8000mt/Year

Highlight:

Low Compression Set FKM Rubber Compound

High Temperature Resistance Fluoroelastomer Rubber Compound

Automotive Industry FPM Rubber Compound

Product Description

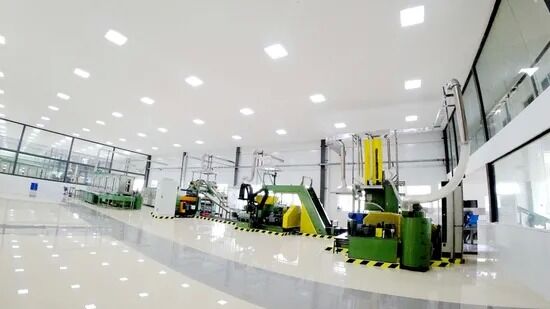

Company Profile

Sichuan Dowhon founded in 2002, headquartered in Chengdu National Industrial Park - Meishan Jinxiang Industrial Park.

Largest FKM manufacturer in China with actual output of 5500mt in 2022
2 CNAS approved laboratories
1 10,000-class cleanroom workshop for smart-wearable devices
1 100,000-class cleanroom workshop for FKM precompounds and compounds
21 production lines for FKM precompounds and compounds
Over 85% market share for Chinese smart-wearable devices

Product Description

Typical Properties

Fluoro Content	Min 66%
Specific Gravity	Min 1.92
Physical Form	Slab
Color	Various
Solubility	Ketones and Esters
Hardness (Shore A)	75 ±5

Instruction

DHF-75#11FL is a fluoroelastomer compound containing copolymer of hexafluoropropylene and vinylidene fluoride, curatives and fillers.

Applications

Designed for O-ring manufacturing, DHF-75#11FL is a compound that can be used directly for final product production.

Features

Excellent mold release
Excellent hot tear resistance
Good mold flow
Low compression set
Low mooney viscosity

Packing Information

DHF-75#11FL is packaged with PE film in cartons. Net weight is 25kg per carton.

Safety and Handling

Store in well ventilated place. Smoking is strictly forbidden in working areas. Avoid eye contact. Wash thoroughly any contacted skin and clothing after handling.

Product Parameters

Typical Properties of Vulcanizate

Press Cure 180ºC@5min, Post Cure 230ºC@24hour

Hardness, Shore A	75 (ASTM D 412)
Elongation at Break, %	205 (ASTM D 412)
Tensile, MPa	12 (ASTM D 2240)
Compression Set % 200ºC@70hour	15 (ASTM D 395 method B Disc)

Low Temperature Resistance

Brittleness Temperature, ºC

-26 (ASTM D 1329)

Air Oven Aging ASTM D-537, 230ºC@70h

Hardness Change, degree	2
Tensile Change %	-2
Elongation at Break Change %	0

Oil Resistance ASTM D471 Standard, 150ºC@70h

ASTM 1# Standard Oil

Hardness Change, degree	2
Tensile Change %	0
Elongation at Break Change %	0
Volume Change %	0.4

ASTM 3# Standard Oil

Hardness Change, degree	6
Tensile Change %	-4
Elongation at Break Change %	2
Volume Change %	2.1

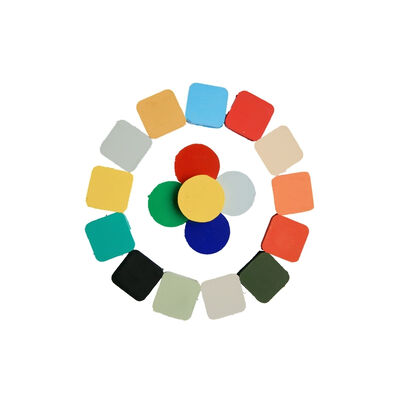

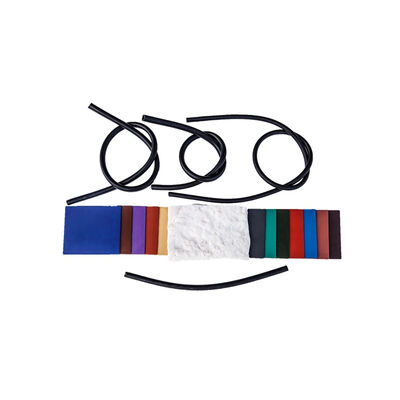

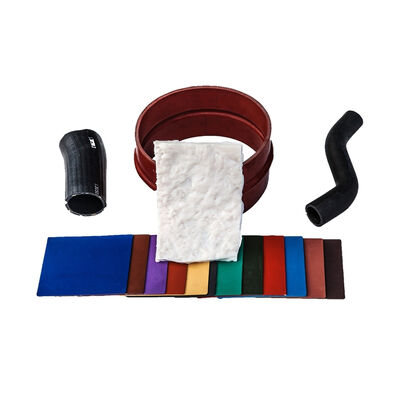

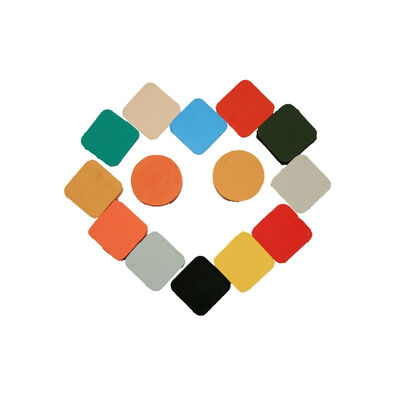

Detailed Photos

Packaging & Shipping

20kg/25kg per carton by courier (FedEx, DHL, etc.); 500kg/625kg/700kg per pallet for shipping.

Installation Instructions

Certifications

ISO9001, ISO14001, IATF16949

Currently holds 65 patents, with 15 invention patents under application, and participated in the formulation of 4 National Standards.

Frequently Asked Questions

What's your MOQ?

BY air MOQ is 20-25KG, by sea MOQ is 100KG.

What's your delivery time?

For stock goods, we can arrange delivery within 3 working days, otherwise delivery time is around 7-14 working days.

What's your package?

Usually goods are packaged with PE film in carton. The weight is 20-25kg net per carton. 500kg/625kg/700kg in a pallet.

How can we select the exactly grade which suit for our usage?

Please contact our sales, we'll recommend suitable grade according to your typical physical properties and other related information.
