Dowhon FKM Rubber Compound with Low Compression Set and High Temperature Resistance for Automotive Industry

MOQ:	20
Price:	10

Detail Information

Product Description

Detail Information

Mooney Viscosity:

20-60

Compression Set:

Thickness:

2mm-8mm

Width:

As Require

Package Size:

445*305*145mm

Fluoro Content:

Min 66%

Specific Gravity:

Min1.92

Hardness:

75 ±5

Elongation At Break:

205%

Tensile Strength:

12 MPa

Brittleness Temperature:

-26ºC

Volume Change ASTM 1#:

0.4%

Volume Change ASTM 3#:

2.1%

Package Weight:

25kg

Production Capacity:

8000mt/Year

Highlight:

Low Compression Set FKM Rubber Compound

High Temperature Resistance Fluoroelastomer Compound

Automotive Industry Application FKM Precompound

Product Description

Dowhon Fluoroelastomer FKM Rubber Copolymer Precompound Compound

Company Profile

Sichuan Dowhon, founded in 2002, is headquartered in Chengdu National Industrial Park - Meishan Jinxiang Industrial Park.

Largest FKM manufacturer in China with actual output of 5500mt in 2022
2 CNAS approved laboratories
10,000 clarification workshop for smart-wearable devices
100,000 clarification workshop for FKM precompounds and compounds

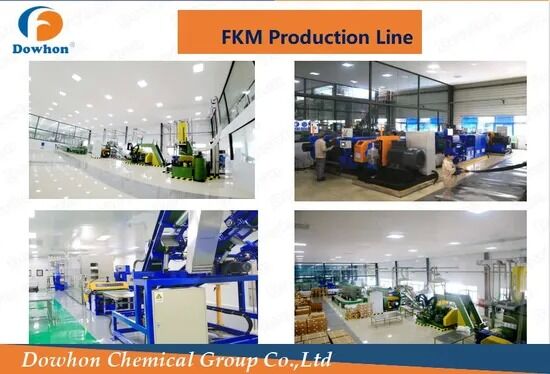

13 production lines for FKM precompounds and compounds
Over 85% market share for Chinese smart-wearable devices

Product Specifications

Typical Properties

Property	Value
Fluoro Content	Min 66%
Specific Gravity	Min 1.92
Physical Form	Slab
Color	Various
Solubility	Ketones and Esters
Hardness (Shore A)	75 ±5

Product Description

DHF-75#11FL is a fluoroelastomer compound containing copolymer of hexafluoropropylene and vinylidene-fluoride, curatives and fillers.

Applications

Designed for O-ring manufacturing, DHF-75#11FL is a compound that can be used directly for final product production.

Key Features

Excellent mold release
Excellent hot tear resistance
Good mold flow
Low compression set
Low mooney viscosity

Technical Performance Data

Typical Physical Properties
Press Cure 180ºC@5min, Post Cure 230ºC@24hour

Test	Result	Standard
Hardness, Shore A	75	ASTM D 412
Elongation at Break, %	205	ASTM D 412
Tensile, MPa	12	ASTM D 2240
Compression Set % 200ºC@70hour	15	ASTM D 395 method B Disc

Low Temperature Resistance

Brittleness temperature, ºC

-26

ASTM D 1329

Aging and Oil Resistance Performance

Air Oven Aging ASTM D-537, 230ºC@70h

Property	Change
Hardness change, degree	2
Tensile change %	-2
Elongation at break change %	0

Oil Resistance ASTM D471 Standard, 150ºC@70h

ASTM 1# Standard Oil

Property	Change
Hardness change, degree	2
Tensile change %	0
Elongation at break change %	0
Volume Change %	0.4

ASTM 3# Standard Oil

Property	Change
Hardness change, degree	6
Tensile change %	-4
Elongation at break change %	2
Volume Change %	2.1

Packaging Information

DHF-75#11FL is packaged with PE film in cartons. The weight is 25kg net per carton.

Safety and Handling

Store in well ventilated place
Smoking is strictly forbidden in working areas
Avoid eye contact
Wash thoroughly any contacted skin and clothing after handling

Product Gallery

Packaging & Shipping

20kg/25kg per carton by courier (FedEx, DHL, etc.); 500kg/625kg/700kg per pallet for shipping.

Installation Instructions

Certifications & Quality Standards

ISO9001, ISO14001, IATF16949 certified.
Currently holds 65 patents, with 15 invention patents under application, and participated in the formulation of 4 National Standards.

Frequently Asked Questions

What's your MOQ?
By air MOQ is 20-25KG, by sea MOQ is 100KG.
What's your delivery time?
For stock goods, delivery within 3 working days; otherwise 7-14 working days.
What's your package?
Usually packaged with PE film in cartons (20-25kg net per carton). 500kg/625kg/700kg per pallet.
How can we select the right grade for our usage?
Please contact our sales team - we'll recommend suitable grades according to your physical properties and application requirements.
