products details

Home > Products >

FKM Rubber Precompound

FKM Rubber Precompound FD Series 20-60 Mooney Viscosity for Orings

All Category

Fluorocarbon Rubber

Ms. Ada

yguo@dowhon.com

8613753601944

Contact Now

FKM Rubber Precompound FD Series 20-60 Mooney Viscosity for Orings

MOQ:	20
Price:	10

Detail Information

Product Description

Detail Information

Mooney Viscosity:

20-60

Compression Set:

Thickness:

2mm-8mm

Specification:

445*305*145mm

F Content:

66%

Specific Gravity:

1.81

Physical Form:

Slab

Solubility:

Ketones And Esters

Mooney Viscosity ML:

Tensile Strength:

15.9 Mpa

Elongation At Break:

210%

Hardness:

Shore A 75

Compression Set %:

Low Temperature Resistance:

-17ºC

Production Capacity:

6000mt/Year

Highlight:

FKM rubber precompound for Orings

FKM rubber FD series precompound

FKM rubber 20-60 Mooney viscosity

Product Description

Fluoroelastomer Rubber Precompound for FKM Compounds

Company Profile

Founded in 2002, headquartered in Chengdu National Industrial Park - Meishan Jinxiang Industrial Park.

The largest FKM manufacturer in China, with actual output of 5500mt in 2022
2 CNAS approved labs
1 10,000 clarification workshop for smart-wearable devices
1 100,000 clarification workshop for FKM precompounds and compounds
13 producing lines for FKM precompounds and compounds

Product Description

FD-601E is a wide molecular weight distribution fluoroelastomer precompound which includes copolymer of hexa-fluoropropylene and vinylidene-fluoride, curatives. It is designed for compression molding products such as O-rings, V-rings and gaskets.

Basic Characteristics

F Content	66%
Specific Gravity	1.81

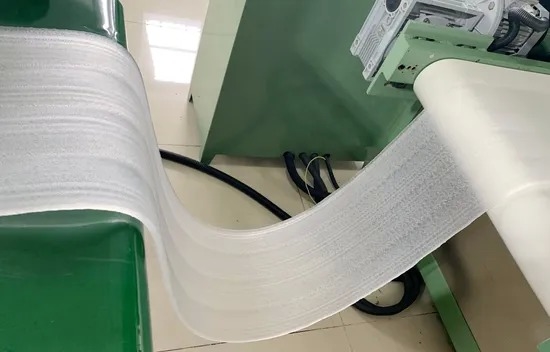

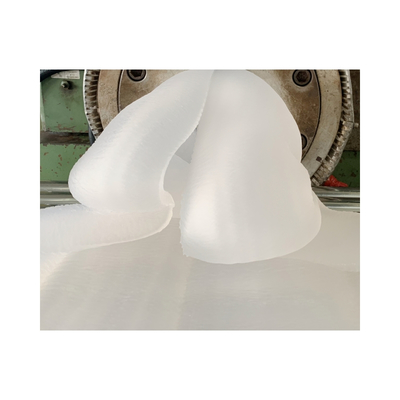

Physical form	Slab
Color	Off-white
Solubility	Ketones and Esters
Mooney Viscosity ML 1+10@ 121ºC	61

Features

Excellent low temperature resistance
Excellent chemical resistance

Good mold flow
Low compression set

Recommended Processing Procedures

FD-601E can be compounded with internal mixers or two-roll mills with standard fillers and other ingredients that are used in typical fluoroelastomer formulations. All the dry ingredients should be blended before adding to the rubbery solid. During compounding, full cooling should be accompanied. After mixing, the compound should be cooled as quickly as possible.

Packing Information

FD-601E is packed with PE film in carton. The weight is 20kg net per carton.

Safety and Handling

Store in well ventilated place
Smoking is forbidden strictly in working areas
Avoid eye contact
Wash thoroughly any contacted skin and clothing after handling
Further safety and handling guide can follow the product's Material Safety Data Sheet or consult Dowhon's people

Typical Properties

Compound	phr
FD-601E	100
N990	30
MgO-150	3
Ca(OH)2	6
Carnauba Wax	1

Rheological Properties

GOTECH Moving Die Rheometer (GT-M3000A) 100 cpm 0.5 Arc 177ºC@ 6min

	Value	Test Method
ML, lb.in	2.21	ASTM D6601
MH, lb.in	21.36	ASTM D6601
Ts2, min	1:08	ASTM D6601
T10, min	1:07	ASTM D6601
T90, min	2:16	ASTM D6601

Physical Properties

Press Cure 180ºC@5min, Post Cure 230ºC@24hour

	Value	Test Method
Tensile Strength, Mpa	15.9	ASTM D412
Elongation at Break, %	210	ASTM D412
Hardness, Shore A	75	ASTM D412

Compression Set %

200ºC@70h

ASTM D395, method B

Low Temperature Resistance

Tr10, ºC

-17

ASTM 1329

Packaging & Shipping

20kgs/25kgs per carton by courier, like FedEx, DHL etc; 500kgs/625kgs/700kgs per pallet for shipping.

Certifications

ISO9001, ISO14001, IS016949
Currently has 65 patents, 15 invention patents are under application, participated in the formulation of 4 National Standards.

FAQ

What's your MOQ?

BY air MOQ is 20-25KG, by sea MOQ is 100KG.

What's your delivery time?

For stock goods, we can arrange delivery within 3 working days, otherwise delivery time is around 7-14 working days.

What's your package?

Usually goods are packaged with PE film in carton. The weight is 20-25kg net per carton. 500kgs/625kgs/700kgs in a pallet.

How can we select the exactly grade which suit for our usage?

Please contact our sales, we'll recommend suitable grade according to your typical physical properties and other related information.

Tags:
