FKM Rubber Precompound

FKM Rubber Precompound FD Series 20-60 Mooney Viscosity 17 Compression Set

All Category

Fluorocarbon Rubber

Ms. Ada

yguo@dowhon.com

8613753601944

Contact Now

FKM Rubber Precompound FD Series 20-60 Mooney Viscosity 17 Compression Set

MOQ:	20
Price:	10

Detail Information

Product Description

Detail Information

Model NO.:

FD Series

Appearance:

Slab

Form:

Solid

Mooney Viscosity:

20-60

Compression Set:

Color:

Milky White

Thickness:

2mm-8mm

Width:

As Require

Specification:

445*305*145mm

Production Capacity:

14000mt/Year

F Content:

66%

Specific Gravity:

1.81

Mooney Viscosity:

Tensile Strength:

15.9 Mpa

Elongation At Break:

210%

Hardness:

Shore A 75

Compression Set:

18%

Low Temperature Resistance:

-17ºC

Highlight:

FKM rubber precompound FD series

FKM rubber 20-60 Mooney viscosity

FKM rubber 17 compression set

Product Description

FKM Rubber Watch Strap OEM Fluoroelastomer

Company Profile

Sichuan Dowhon, founded in 2002 and headquartered in Chengdu National Industrial Park - Meishan Jinxiang Industrial Park, is the largest FKM manufacturer in China with significant production capabilities:

Annual production capacity of 5500mt in 2022
2 CNAS approved laboratories
1 10,000-class cleanroom workshop for smart-wearable devices
1 100,000-class workshop for FKM precompounds and compounds
13 production lines for FKM precompounds and compounds
Over 85% market share in Chinese smart-wearable devices

Product Description

FD-601E is a wide molecular weight distribution fluoroelastomer precompound containing copolymer of hexafluoropropylene and vinylidene-fluoride with curatives. Designed for compression molding products including O-rings, V-rings, and gaskets.

Basic Characteristics

F Content	66%
Specific Gravity	1.81
Physical form	Slab
Color	Off-white
Solubility	Ketones and Esters
Mooney Viscosity ML 1+10@ 121ºC	61

Features

Excellent low temperature resistance
Excellent chemical resistance
Good mold flow
Low compression set

Recommended Processing Procedures

FD-601E can be compounded with internal mixers or two-roll mills using standard fillers and ingredients typical for fluoroelastomer formulations. All dry ingredients should be blended before adding to the rubbery solid. Maintain full cooling during compounding and cool the compound quickly after mixing.

Packing Information

FD-601E is packed with PE film in cartons, with 20kg net weight per carton.

Safety and Handling

Store in well ventilated areas
Strictly no smoking in working areas
Avoid eye contact
Wash thoroughly after handling

For complete safety guidelines, consult the product's Material Safety Data Sheet or contact Dowhon representatives.

Typical Properties

Compound	phr
FD-601E	100
N990	30
MgO-150	3
Ca(OH)2	6
Carnauba Wax	1

Rheological Properties

GOTECH Moving Die Rheometer (GT-M3000A) 100 cpm 0.5 Arc 177ºC@ 6min

Property	Value	Test Method
ML, lb.in	2.21	ASTM D6601
MH, lb.in	21.36	ASTM D6601
Ts2, min	1:08	ASTM D6601
T10, min	1:07	ASTM D6601
T90, min	2:16	ASTM D6601

Physical Properties

Press Cure 180ºC@5min, Post Cure 230ºC@24hour

Property	Value	Test Method
Tensile Strength, Mpa	15.9	ASTM D412
Elongation at Break, %	210	ASTM D412
Hardness, Shore A	75	ASTM D412

Compression Set %

200ºC@70h

ASTM D395, method B

Low Temperature Resistance

Tr10, ºC

-17

ASTM 1329

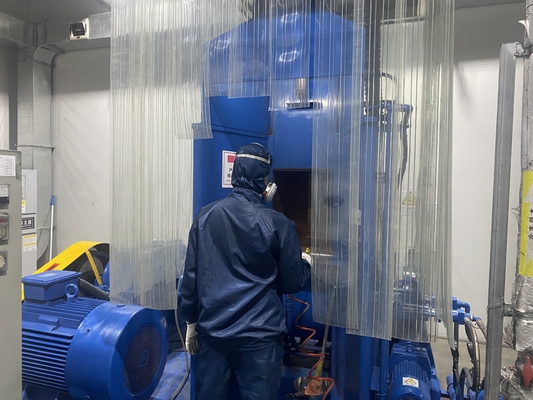

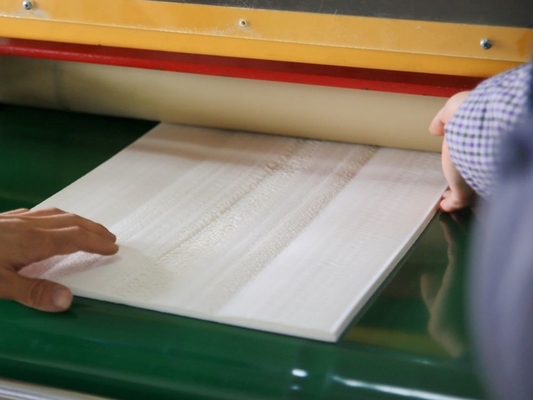

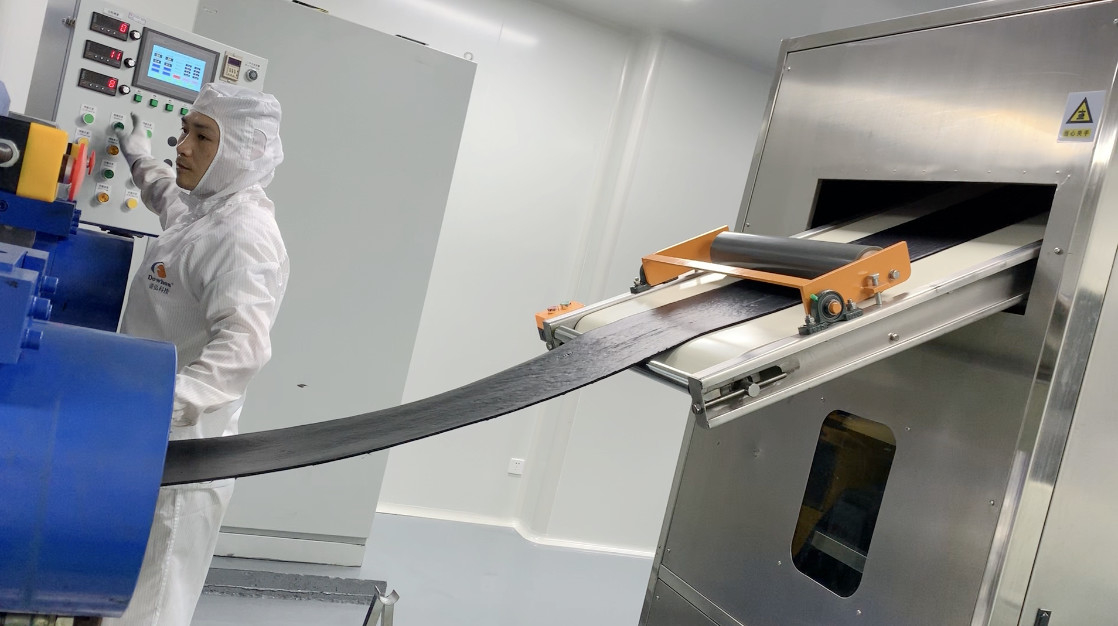

Product Image

Packaging & Shipping

20kgs/25kgs per carton by courier (FedEx, DHL, etc.); 500kgs/625kgs/700kgs per pallet for shipping.

Certifications

ISO9001, ISO14001, IATF16949

Currently holds 65 patents with 15 invention patents under application. Participated in the formulation of 4 National Standards.

Frequently Asked Questions

What's your MOQ?

BY air MOQ is 20-25KG, by sea MOQ is 100KG.

What's your delivery time?

For stock goods: 3 working days. Otherwise: 7-14 working days.

What's your package?

PE film in cartons (20-25kg net per carton). 500kgs/625kgs/700kgs per pallet.

How to select the right grade?

Contact our sales team for recommendations based on your specific requirements.
