FKM Rubber Precompound FD Series 20-60 Mooney Viscosity for Automotive

MOQ:	20
Price:	10

Detail Information

Product Description

Detail Information

Model NO.:

FD Series

Appearance:

Slab

Form:

Solid

Mooney Viscosity:

20-60

Compression Set:

Color:

Milky White

Thickness:

2mm-8mm

Specification:

445*305*145mm

F Content:

66%

Specific Gravity:

1.81

Mooney Viscosity:

Tensile Strength:

15.9 Mpa

Elongation At Break:

210%

Hardness:

Shore A 75

Compression Set:

18%

Highlight:

FKM rubber precompound automotive grade

FKM rubber FD series 20-60 Mooney

FKM rubber precompound high viscosity

Product Description

Fluoroelastomer Precompound Fluoroelastomer Material FKM Rubber for Rubber Compound

Company Profile

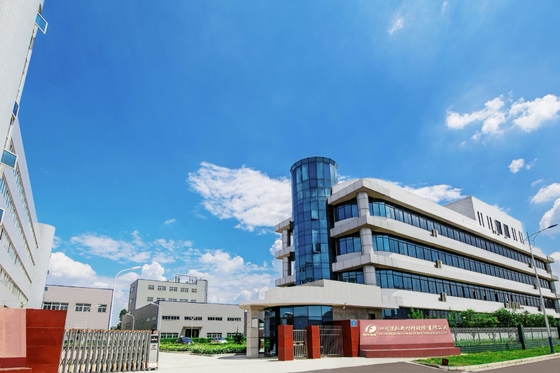

Sichuan Dowhon founded in 2002, headquartered in Chengdu National Industrial Park- Meishan Jinxiang Industrial Park.

The largest FKM manufacturer in China, with the actual output is 5500mt in 2022 which is the total sum of No.2 - No.5.
2 CNAS approved labs
1 10,000 clarification workshop for smart-wearable devices
1 100,000 clarification workshop for FKM precompounds and compounds
13 producing lines for FKM precompounds and compounds
Over 85% market share for Chinese smart-wearable devices

Product Description

FD-601E is a wide molecular weight distribution fluoroelastomer precompound which include copolymer of hexa-fluoropropylene and vinylidene-fluoride, curatives. It is designed for the compression molding product such as O-ring, V-ring and gasket.

Basic Characteristics

F Content	66%
Specific Gravity	1.81
Physical form	Slab
Color	Off-white
Solubility	Ketones and Esters
Mooney Viscosity ML 1+10@ 121ºC	61

Features

Excellent low temperature resistance
Excellent chemical resistance
Good mold flow
Low compression set

Recommended Processing Procedures

FD-601E can be compounded with internal mixers or two-roll mills with standard fillers and other ingredients that are used in typical fluoroelastomer formulations. All the dry ingredients should be blended before adding to the rubbery solid. During compounding, full cooling should be accompanied. After mixing, the compound should be cooled as quickly as possible.

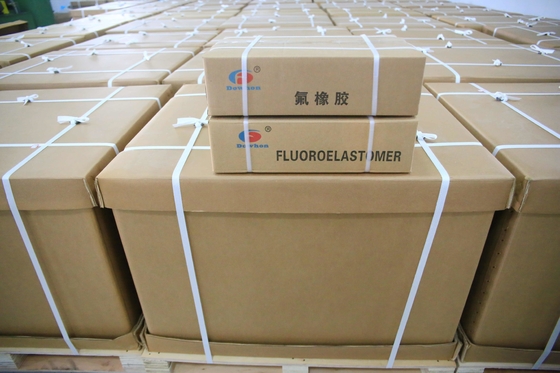

Packing Information

FD-601E is packed with PE film in carton. The weight is 20kg net per carton

Safety and Handling

Store in well ventilated place
Smoking is forbidden strictly in working areas
Avoid eye contact
Wash thoroughly any contacted skin and clothing after handling
Further safety and handing guide, can follow the product's Material Safety Data Sheet or consult Dowhon's people

Typical Properties

Compound	phr
FD-601E	100
N990	30
MgO-150	3
Ca(OH)2	6
Carnauba Wax	1

Rheological Properties

GOTECH Moving Die Pheometer (GT-M3000A) 100 cpm 0.5 Arc 177ºC@ 6min

	Value	Test Method
ML, lb.in	2.21	ASTM D6601
MH, lb.in	21.36	ASTM D6601
Ts2, min	1:08	ASTM D6601
T10, min	1:07	ASTM D6601
T90, min	2:16	ASTM D6601

Physical Properties

Press Cure 180ºC@5min, Post Cure 230ºC@24hour

	Value	Test Method
Tensile Strength, Mpa	15.9	ASTM D412
Elongation at Break, %	210	ASTM D412
Hardness, Shore A	75	ASTM D412

Compression Set %

200ºC@70h

ASTM D395, method B

Low Temperature Resistance

Tr10, ºC

-17

ASTM 1329

Packaging & Shipping

20kgs/25kgs per carton by courier, like FedEx, DHL etc; 500kgs/625kgs/700kgs per pallet for shipping.

Certifications

ISO9001, ISO14001, IATF16949

Currently has 65 patents, 15 invention patents are under application, participated in the formulation of 4 National Standards.

FAQ

1. What's your MOQ?
BY air MOQ is 20-25KG, by sea MOQ is 100KG.

2. What's your delivery time?
For stock goods, we can arrange delivery within 3 working days, otherwise delivery time is around 7-14 working days.

3. What's your package?
Usually goods are packaged with PE film in carton. The weight is 20-25kg net per carton. 500kgs/625kgs/700kgs in a pallet.

4. How can we select the exactly grade which suit for our usage?
Please contact our sales, we'll recommend suitable grade according to your typical physical properties and other related information.
