FKM Rubber Precompound

High Temp Resistant FKM Rubber Precompound 70 Shore A

All Category

Fluorocarbon Rubber

Ms. Ada

yguo@dowhon.com

8613753601944

Contact Now

High Temp Resistant FKM Rubber Precompound 70 Shore A

Brand Name:	DOWHON
Model Number:	FD
MOQ:	25
Price:	8-20USD
Packaging Details:	25kgs Per Carton, 500kgs/625kgs/700kgs Per Pallet
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001, ISO14001, IATF16949

Features:

ODORLESS\high Temp

Ozone Resistance:

Excellent

Metal Bonding:

Yes

Producing Method:

Molding, Injection, Transfer Molding

Usage:

OIL SEAL, GASKET, O RINGS.

Abrasion Resistance:

Excellent

Hardness:

70 Shore A

Oem:

Yes

Elongation At Break:

200%

Compression Set:

25%

Weather Resistance:

Excellent

Fuel Resistance:

Excellent

Oil Resistance:

Excellent

Mooney Viscosity:

40-80

Industry:

Automotive Industry For Fuel System

Supply Ability:

14000mt/year

Highlight:

FKM rubber precompound high temp resistant

70 Shore A FKM rubber material

FKM precompound with warranty

Product Description

High Temperature Resistant Fluoroelastomer

Product Attributes

Ozone Resistance

Excellent

Metal Bonding

Yes

Producing Method

Molding, Injection, Transfer molding

Usage

OIL SEAL, GASKET, O RINGS

Abrasion Resistance

Excellent

Hardness

70 Shore A

OEM

Yes

Elongation At Break

200%

Compression Set

25%

Weather Resistance

Excellent

Features

Odorless, High Temperature Resistance

Fuel Resistance

Excellent

Oil Resistance

Excellent

Mooney Viscosity

40-80

Industry

Automotive Industry For Fuel System

Product Description

A peroxide vulcanized ternary fluorine rubber (FKM) compound, this product is a specially formulated high temperature resistant fluoroelastomer. Compared with ordinary fluoroelastomers, it offers superior long-term stability and sealing reliability at 280℃, with short-term resistance to 300℃. Suitable for producing molded products for high-temperature industries, with customizable performance according to customer requirements.

Key Features

Excellent high temperature resistance and sealing reliability for long-term use at 280℃
Short-term resistance to 300℃ while maintaining good elasticity

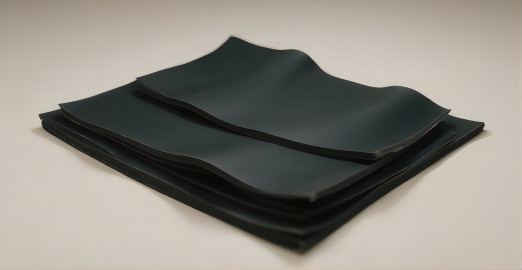

Product Display

Typical Properties

1. Physical Properties (Press cure: 180℃@5min, post cure: 230℃@4h)

Test, Unit	Result	Test Method
Hardness (shore A)	70	GB/T531.1-2008
Tensile Strength, Mpa	16	GB/T 528-2009
Elongation at break, %	170	GB/T 528-2009

2. Thermal Aging 280℃@168h

Property	Result	Test Method
Hardness	72	GB/T 7759.1-2015
Strength	12
Elongation	150

3. Compression Set 200℃@70h

Property	Result	Test Method
Compression Set	≤25%	GB/T 7759.1-2015

4. Compression Set 280℃@70h

Property	Result	Test Method
Compression Set	≤60%	GB/T 7759.1-2015

Packing and Delivery

25kgs per carton, 500kg/800kg per wooden smoke free pallet.

Factory Landscape

3 FKM workshops, including 1 100,000 clean level producing line and 1 10,000 clean level producing line.

CNAS Approved Lab

100,000 Clean Level Producing Line

Company Brief Introduction

Dowhon Chemical Group is not just a compounder, but also specializes in research and development. With plant capacity over 5000t/y and 15 sets of Banbury production lines, we focus on new material development to meet domestic and international market demands. We collaborate with universities and professional rubber research institutes for co-innovation and work closely with customers to better meet market requirements.

Our operations are strictly controlled under IATF 16949:2016, GB/T 28001-2011, and GB/24001-2004 standards. Our products are widely used in chemistry, aviation, aerospace, electronics, petroleum, automobile, textile, and machinery industries, serving well-known customers from Europe, America, the Middle East, and Southeast Asia.

Certificates

ISO-9001, ISO-14001, ISO-18001, IATF16949.

Frequently Asked Questions

1. What's your MOQ?

By air MOQ is 20-25KG, by sea MOQ is 100KG.

2. What's your delivery time?

For stock goods, we can arrange delivery within 3 work days, otherwise delivery time is around 7-14 work days.

3. What's your package?

Usually goods are packaged with PE film in carton. The weight is 20-25kg net per carton. 500KG in a pallet.

4. How can we select the exactly grade which suit for our usage?

Please contact our sales, we'll recommend suitable grade according to your typical physical properties and other related information.
