HNBR Compound
>
HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa)

HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa)

Brand Name: DOWHON
MOQ: 20KG
Price: 10-30usd/kg
Packaging Details: 20kg per carton, 445*305*145mm
Detail Information
Place of Origin:
Chengdu, Sichuan, P.R. China
Certification:
ISO-9001, ISO-14001, ISO-45001, ITAF-16949
Low Temperature Flexibility:
Good
Temperature Range:
-40°C To 150°C
Hardness:
60-90 Shore A
Oil Resistance:
Excellent
Elongation At Break:
200-400%
Weather Resistance:
Excellent
Color:
Black
Tensile Strength:
10-20 MPa
Compression Set:
20-40%
Abrasion Resistance:
Excellent
Chemical Resistance:
Excellent
Electrical Insulation:
Good
Material Type:
Hydrogenated Nitrile Butadiene Rubber
Flame Resistance:
Good
Highlight:

FKM HNBR Compound

,

Hydrogenated Nitrile Butadiene Rubber HNBR Compound

,

HNBR Compound Rubber Parts

Product Description
Hydrogenated Nitrile Butadiene Rubber (HNBR) Material
Hydrogenated Nitrile Butadiene Rubber (HNBR) is a highly saturated special elastomer processed through selective hydrogenation. Derived from nitrile butadiene rubber, HNBR offers excellent flexibility and plasticity, making it suitable for manufacturing various products including O-rings, gaskets, and hoses to meet diverse application requirements.
Material Characteristics
Mechanical Properties
HNBR exhibits high strength, exceptional tear resistance, and superior abrasion resistance. With tensile strength ranging from 10MPa to 30MPa and elongation at break reaching 200% to 800%, HNBR withstands significant external forces and repeated deformations while maintaining stable performance during long-term use without cracking or wear issues.
Environmental Resistance
  • Oil Resistance: Excellent resistance to fuel oil, lubricating oil, aromatic solvents, and various petroleum-based fluids
  • Chemical Corrosion Resistance: Strong resistance to chemicals including freon, acids, alkalis, and other corrosive substances
  • Ozone Resistance: Exceptional ozone resistance for long-term performance in ozone-rich environments
  • Weather Resistance: Good weathering and aging resistance for extended service life in harsh outdoor conditions
Physical Characteristics
HNBR features uniform texture and smooth surface with excellent elasticity and flexibility. With an elastic modulus between 1MPa and 10MPa, it provides close adhesion to sealing surfaces for effective sealing performance. The material also offers superior appearance quality suitable for applications with high aesthetic requirements.
Thermal Performance
HNBR operates effectively across a wide temperature range from -55°C to 180°C. This broad temperature tolerance ensures stable performance in various working conditions, including high-temperature automotive engine compartments and low-temperature environments in cold regions.
International Standards & Certification
Dowhon holds IATF16949:2016 quality management system certification. Our HNBR products comply with international standards including ASTM D2000 and ISO 6471, ensuring global recognition and suitability for demanding applications in automotive, aerospace, and other quality-critical industries.
Packaging & Delivery
Standard packaging includes 20kg cartons, with 500kg or 800kg per wooden smoke-free pallet.
HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 0

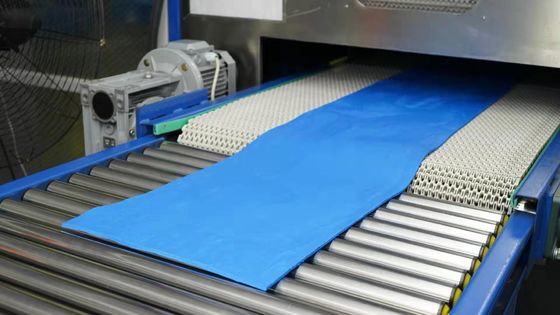

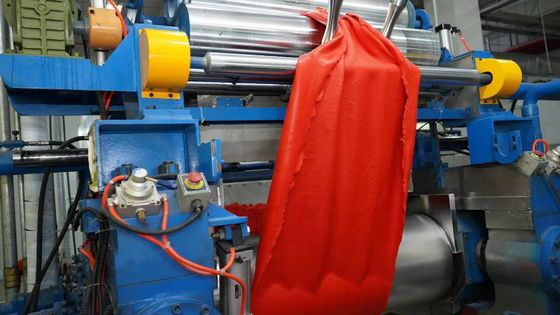

Manufacturing Facilities
Our manufacturing complex includes three FKM workshops featuring one 100,000 clean level production line and one 10,000 clean level production line.
HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 1 HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 2
CNAS Approved Laboratory
HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 3

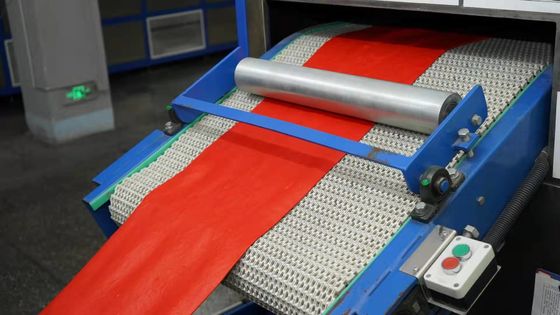

100,000 Clean Level Production Line
HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 4 HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 5
Company Overview
Dowhon Chemical Group
We are not just compounders - we are research and development specialists. With annual production capacity exceeding 5000 tons and 15 sets of banbury production lines, we focus on new material development to meet domestic and international market demands. We collaborate with universities and professional rubber research institutes for co-innovation and work closely with customers to address market requirements. Our operations are strictly controlled under IATF 16949:2016, GB/T 28001-2011, and GB/24001-2004 standards. Our products serve chemistry, aviation, aerospace, electronics, petroleum, automotive, textile, and machinery industries, with established customers across Europe, America, the Middle East, and Southeast Asia.
Certifications
HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 6 HNBR Rubber Compound with Excellent Oil Resistance, Wide Temperature Range (-40°C to 150°C), and High Tensile Strength (10-20 MPa) 7
Frequently Asked Questions
What is your minimum order quantity?
Air shipment MOQ: 20-25KG, Sea shipment MOQ: 100KG
What is your delivery time?
Stock goods: 3 working days, Custom orders: 7-14 working days
What is your packaging?
Standard packaging includes PE film in cartons (20-25kg net per carton), with 500KG per pallet
How can we select the appropriate grade for our application?
Contact our sales team for grade recommendations based on your specific physical property requirements and application information
